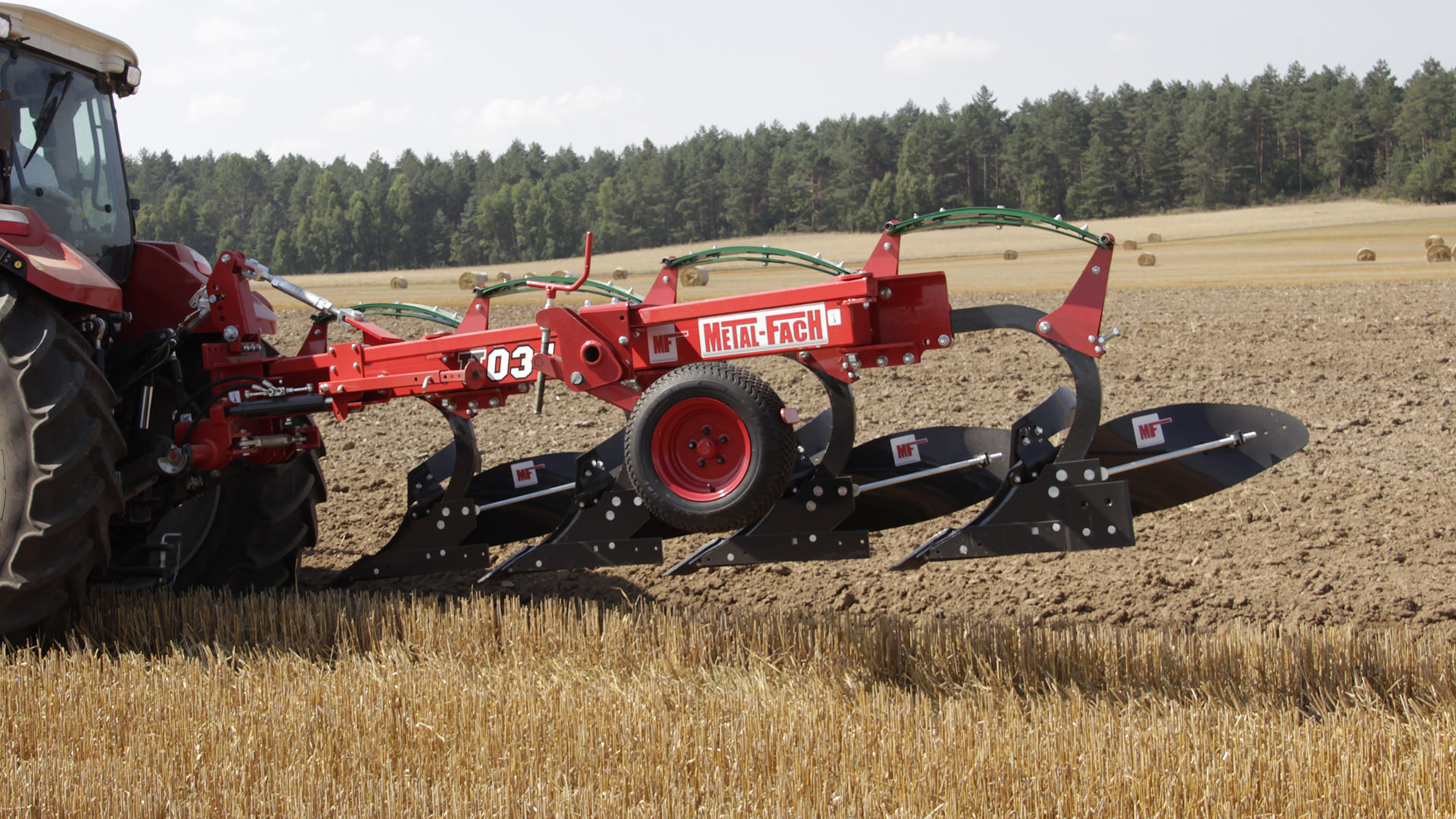

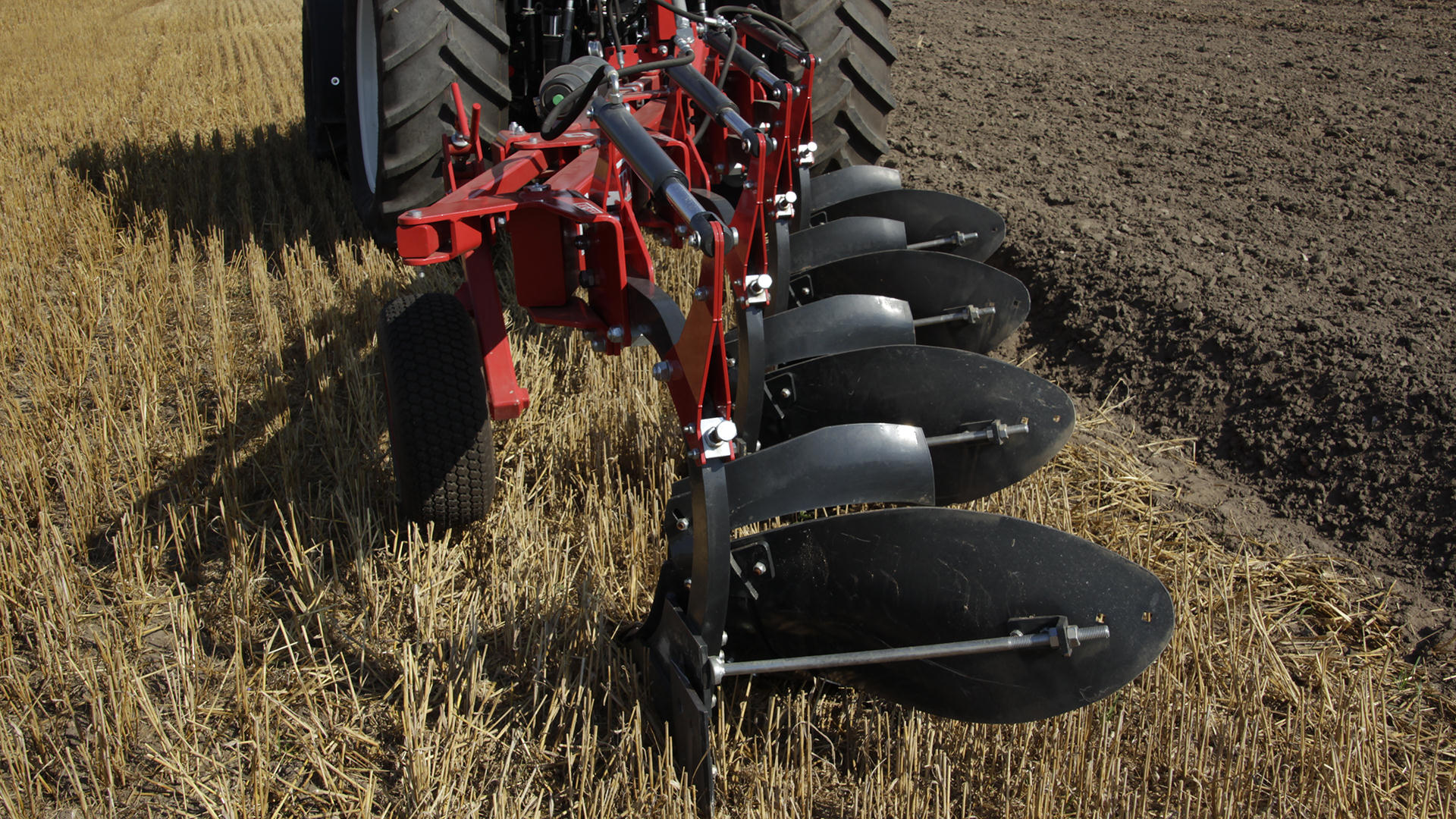

U034 Hitched bedding plough with non-stop hydraulic safety system
The hitched plough is also available with the non-stop (continuous operation) hydraulic safety gear. The machine can have from 3 to 5 plough shares and weighs between 750 and 1150 kg, whereas the traction power demand ranges from 90 to 150 HP, depending on the specific versions. The regular version features the standard 1085 x 330 mm mouldboard, a 520 mm long and 150 mm high share, and 320 x 100 mm slicks. These components can be upgraded by replacing with the included toughened mouldboards, share and slicks. The beam size is 200 x 100 mm, and the ground clearance is 750 mm. The machine’s ploughing width is infinitely adjustable, from 0 to 50 cm. The ploughing depth wheel of this plough version measures 23/8.5-12 10PR. This model also features a first-furrow adjustment screw gear.
- ADJUST AS YOU WILL: The plough enables smooth adjustment of ploughing width
- CONVENIENT INSTALLATION: The U034 plough is a tractor-hitched machine
- STABLE: Features a support foot
- CUSTOMIZED FOR YOU: The plough features a first-furrow adjustment screw gear and a mechanical gear for ploughing width adjustment
- MADE EVEN SAFER: Features the non-stop hydraulic safety system
- ROBUST AND DURABLE DESIGN: High-strength steel structure
- BETTER PERFORMANCE: The machine can be upgraded with the optional skim coulter with height adjustment
| Item | Type | U034 | U034/1 | U034/2 |
| 1 | Plough type | non-stop hydraulic | non-stop hydraulic | non-stop hydraulic |
| 2 | Maximum working width [m] | 1,5 | 2 | 2,5 |
| 3 | Plough bodies [pcs.] | 3 | 4 | 5 |
| 4 | Protection type | spring | spring | spring |
| 5 | Depth adjustment range [cm] | 10 to 35 | 10 to 35 | 10 to 35 |
| 6 | Height from frame to ground [mm] | 750 | 750 | 750 |
| 7 | Plough body spacing [mm] | 1000 | 1000 | 1000 |
| 8 | Working speed [km/h] | 10-sie | 10-sie | 10-sie |
| 9 | Effective field capacity [ha/h] | 1,2-1,5 | 1,6-2,0 | 2,0-2,5 |
| 10 | Power demand* [HP] | 90 | 120 | 150 |
| Overall dimensions | ||||
| 11 | Length [mm] | 3330 | 4330 | 5330 |
| 12 | Height [mm] | 1470 | 1470 | 1470 |
| 13 | Width [mm] | 1460 | 1460 | 1460 |
| 14 | Weight [kg] | 750 | 950 | 1150 |
| 15 | Hitch category | 2 | 2 | 2 |
| Optional accessories | ||||
| 16 | Type B mouldboard ** | ● | ● | ● |
| 17 | Type B support ** | ● | ● | ● |
| 18 | Type B body ** | ● | ● | ● |
| 19 | Type B share ** | ● | ● | ● |
| 20 | Type B breast ** | ● | ● | ● |
| 21 | Type B skid ** | ● | ● | ● |
| 22 | Trimmer | ● | ● | ● |
| 23 | Reinforced chisel | ● | ● | ● |
| 24 | Reinforced share | ● | ● | ● |
| 25 | Reinforced mouldboard | ● | ● | ● |
| 26 | Skimmer with height adjustment | ● | ● | ● |
* Depending on the soil type
** Options available as complete sets only
Legend:
V standard
• optional
