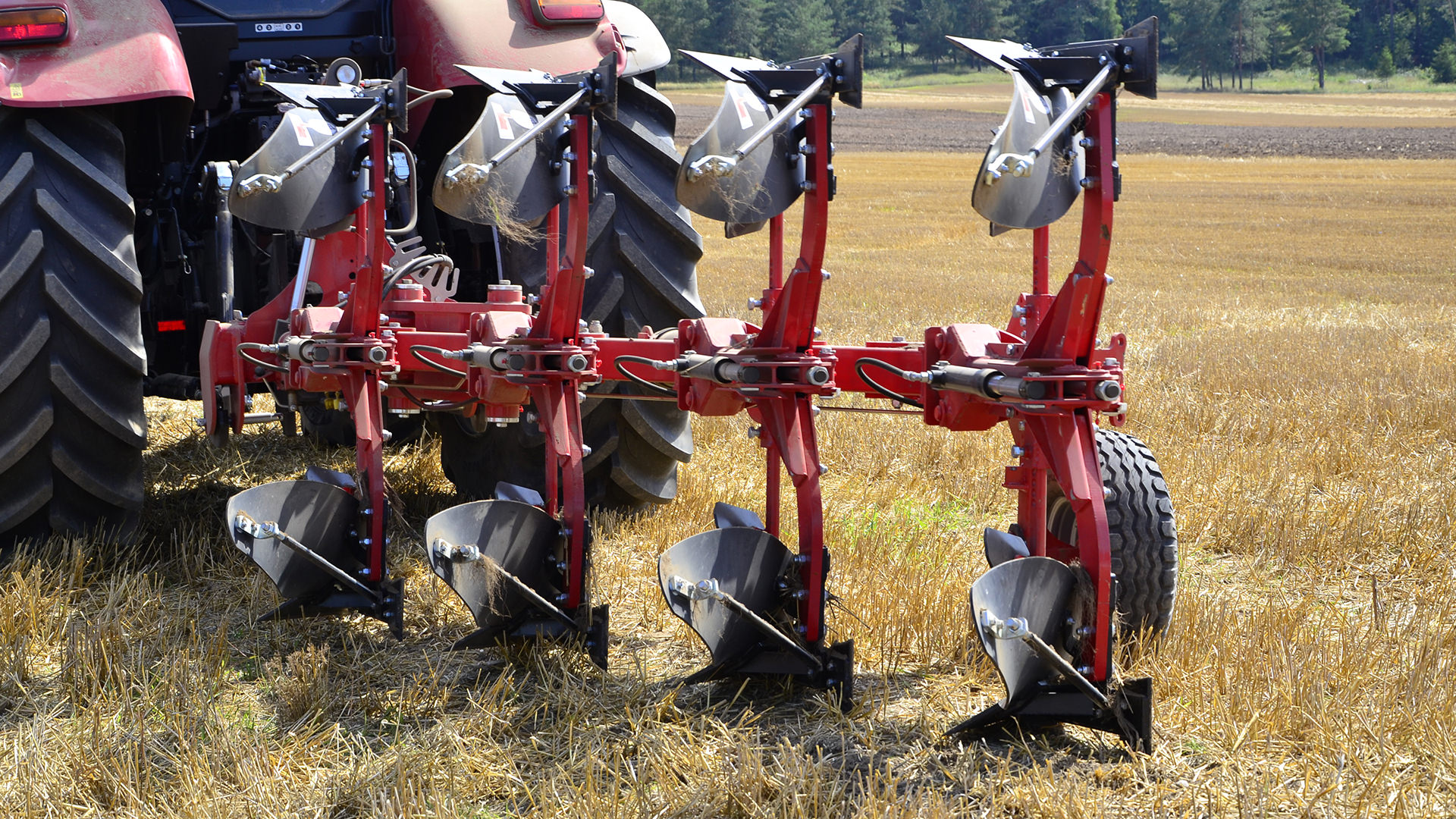

U061/1 5 (4+1) furrow rotary plough with non-stop hydraulic safety system
The 5-furrow plough with the hydraulic safety system is the heaviest machine in this product category from Metal-Fach. The 5-furrow plough with the non-stop hydraulic safety system weighs a staggering 2050 kg and requires a minimum of 175 HP traction power. The self-levelling cylinders are standard accessories. The machine standard accessories include the H4S helical mouldboard (950 x 350 mm), 2 hydraulic power ports, adjustable ploughing width, and a steel framework. The ploughing depth wheel size is 10.0/80-12.5 10PR. The plough beam and turning screw diameter is 120 mm. The ploughing body spacing is 950 mm. The ground clearance is 800 mm. The machine features standard 170 x 585 m shares and 310 x 70 mm slicks. The machine can be upgraded with several options, including: the type C5 cylindrical mouldboard and the 320/60-12 multifunctional wheel. The plough can be also equipped with toughened slick, share and mouldboard, and a skim coulter with height adjustment.
- MADE EVEN SAFER: Features the non-stop hydraulic safety system
- PRECISE AND EFFICIENT: The standard accessories include the plough levelling cylinder
- CUSTOMIZED FOR YOU: The plough features a first-furrow adjustment screw gear and a mechanical gear for ploughing width adjustment
- HIGH PERFORMER: The machine comes with a turning cylinder to enhance overall performance in the field
- ROBUST AND RELIABLE: High-quality HLE (High Limit Elastic) steel frame
- HANDY: The plough features 2 handy hydraulic power ports as standard accessories
- FOR MORE EFFICIENCY: The machine can be optionally equipped with a skim coulter with height adjustment, a levelling cylinder, and a handy 320/60-12 sized multifunctional wheel
Item | Type | U061/1 |
1 | Plough bodies [pcs.] | 5 (4+1) |
2 | Furrows [no.] | 5 with non-stop hydraulic protection |
3 | Beam size [mm] | 120 |
4 | Rotation screw diameter [mm] | Ø120 |
5 | Plough body spacing [mm] | 950 |
6 | Frame to ground clearance [mm] | 800 |
7 | Machine weight [kg] | 1700/2050 |
8 | Power demand* [HP] | 150/175 |
Optional accessories | ||
9 | Type C5 cylindrical mouldboard | ● |
10 | Multifunctional wheel: 320/60-12 | ● |
11 | Rotation cylinder | V |
12 | Reinforced chisel | ● |
13 | Reinforced share | ● |
14 | Reinforced mouldboard | ● |
15 | Skimmer with height adjustment | ● |
* Depending on the soil type
** Options available as complete sets only
Legend:
V standard
• optional
