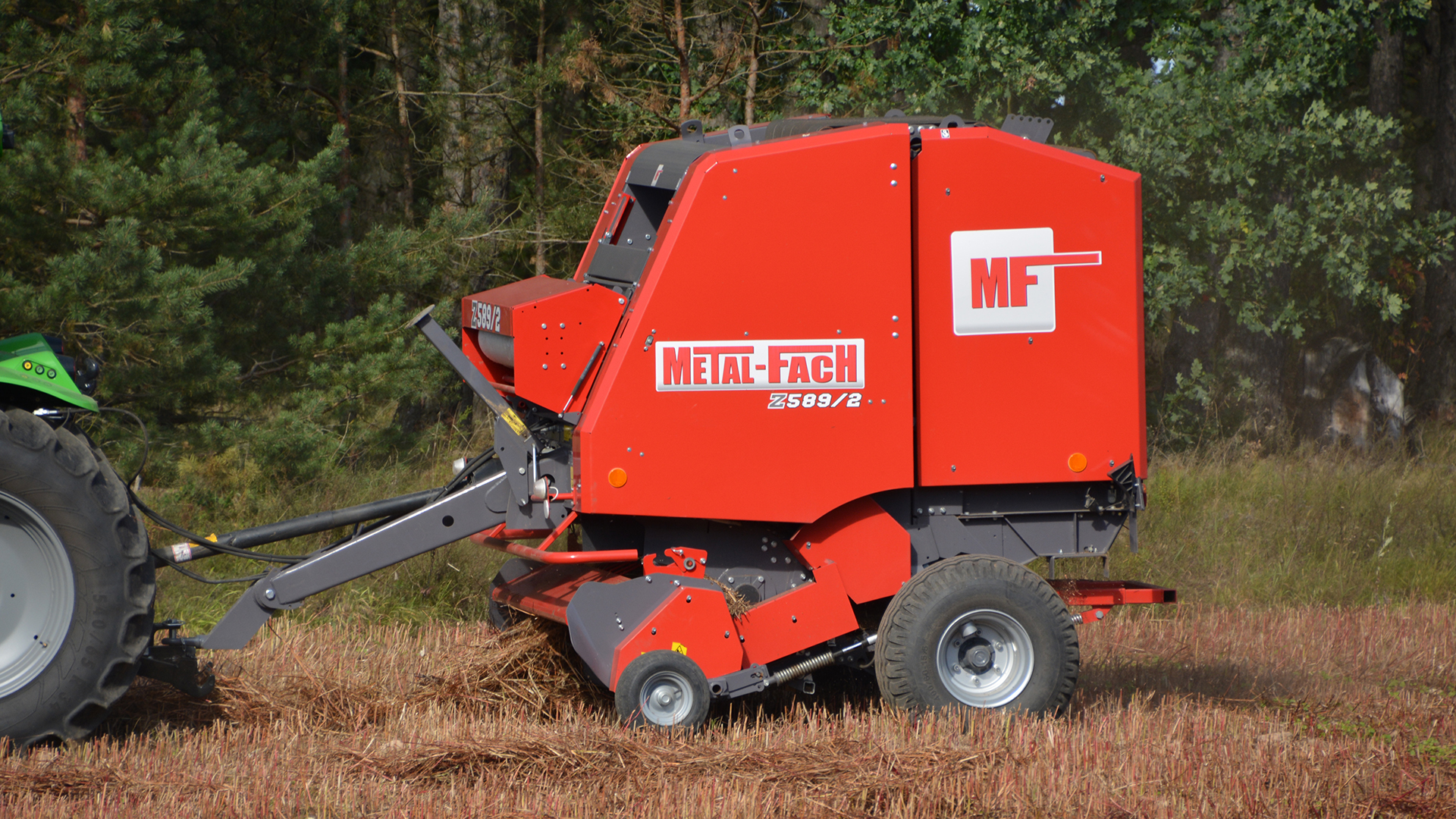

  • Z589/2 Variable chamber baler

    The Z589 variable chamber baler is intended for collecting and baling plant material (hay, dry grass and straw) into cylindrical bales. The baler produces 1200 mm wide bales in the diameter range from 500 to 1600 mm.
    The machine features a bladed rotor that can be disengaged at any time. The blades have individual spring protection features and the design cutting length is approx. 77 mm.
    The machine enables smoothly variable setting of the compaction ratio of the collected material, which is controlled manually with the DCV located on the machine. The baler’s highlights include high compaction baling from the very beginning of the process (for a hard bale core) and the capacity of baling with low density cores and more compacted outer layers, just like in constant displacement balers.
    The control panel enables the operator to set and track individual stages of machine operation: from the loading of the chamber and increasing the bale diameter to the stages of bale wrapping, bale release and chamber closure before the next baling cycle.


Item no. Type  Z589/2
  Machine dimensions:
1 Length [mm] 3920
2 Width [mm] 2400
3 Height [mm] 2650
4 Weight [kg] 3200
  Tractor requirements:
5 PTO power demand [kW] 45-60
6 PTO rotational speed [rpm] 540
7 Hydraulic connection to tractor 2 bi-directional control valves
8 Minimum tractor power output [kW] 70
9 Required tractor hydraulic system pressure [atm./MPa] 140/14
10 Required oil flow rate [l/min] 25
11 Electrical system voltage [V] 12
12 Working/transport speed [km/h] 10/40
  Bale characteristics:
13 Yield [pcs./h] 25-45
14 Bale width [mm] 1200
15 Bale diameter [mm] 500-1600
16 Bale weight [kg] 280-1235
17 Rolling chamber type variable chamber belt and cylinder baler
18 Bale density variable
19 Net wrapping system V
20 Twine wrapping system V
21 Twine wrapping spacing adjustment stepless
22 Chamber feed system pick-up and rotary feeder
23 Pickup type drum-pin
24 Pickup width [mm] 2000
25 Working collecting width [mm] 1869
26 Number of pick-up tines 44
27 Tyres 400/60-15.5
28 Tyre pressure [kPa] 2.5-3.5
  Cutting system
29 Feeding rotor star-type with 3 vertices
30 Number of cutter knives [pcs.] 13
31 Theoretical cutting length [mm] 77
32 Knives protection spring-type for each knife
  Optional equipment
33 Chain central lubrication  V
34 Film wrapping

* Depending on the soil type
** Options available as complete sets only

V standard
• optional

. . .
