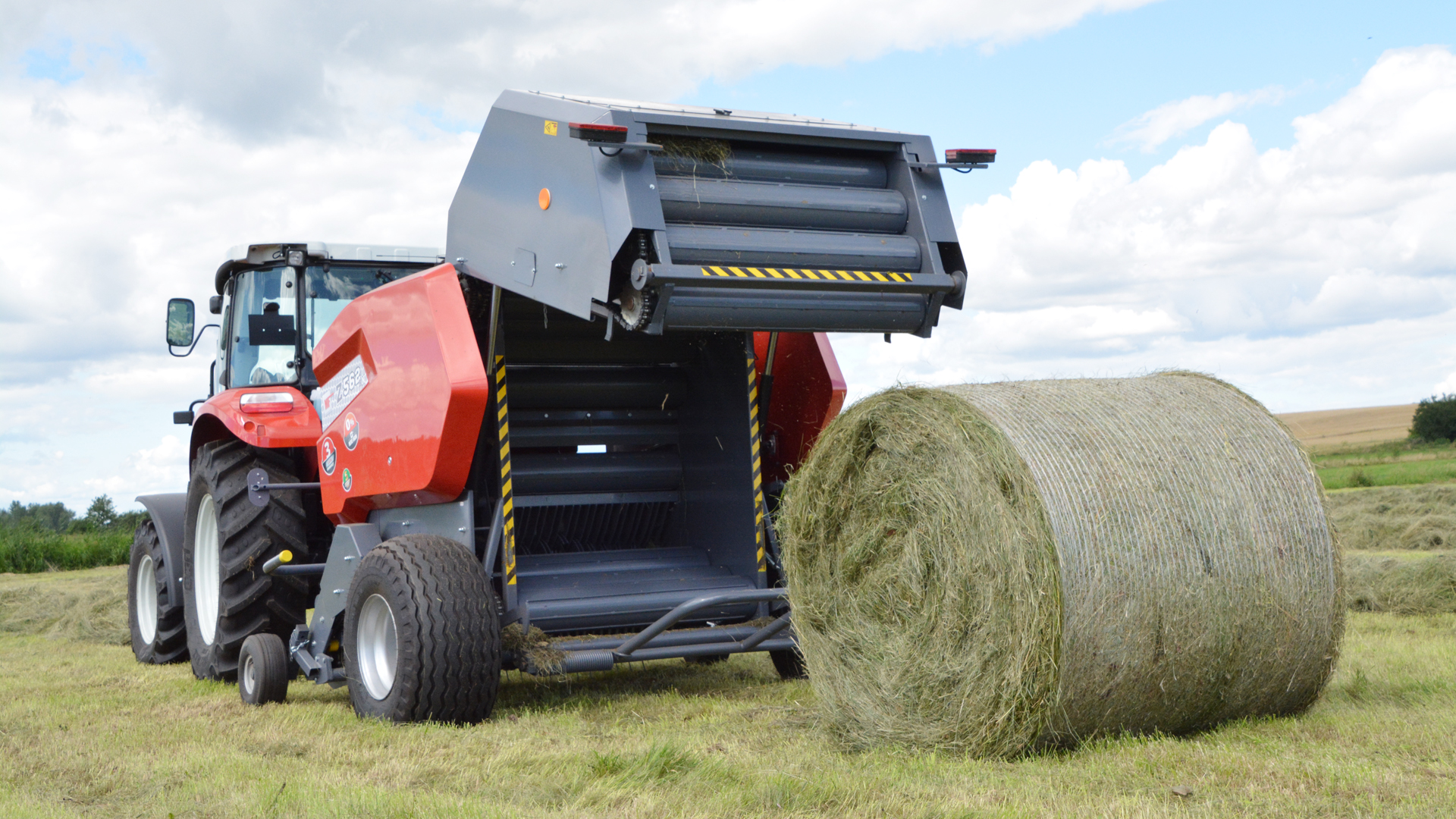

Baler Z562 with rotor
The Z562 baler with rotor is an enhanced Z562 model, which is the first one on the Polish market to feature innovative cylindrical baling chambers with a high product compaction ratio to achieve an excellent quality of haylage.
Similar to the Z562 base model, the rotor version also features 180 cm wide pickups and a net wrapper. This can increase the work efficiency by as much as 30%. The machine also features an ensilage applicator and the rear gate mechanical lock, which, unlike the hydraulic-powered versions, does not stress the coupled tractor. The rotor baler is somewhat longer and heavier than the base model. The rotary feeding system ensures even feeding of material to the baling chamber, which improves the work speed and efficiency.
- PERFORMANCE: the 180 cm pickups and net wrappers increase the harvest efficiency by as much as 30%.
- WORK SPEED: this is the first product on the marked with an ensilage applicator, so processing is already underway during harvesting.
- HIGH HAYLAGE QUALITY: the innovative technology involving perfectly round baling chambers assures the maximum compaction ratio possible.
- EASY CONTROL: simple and reliable control with an electronic panel that features a bale counter and other features.
- EFFICIENCY ON ROUGH TERRAIN: the wide wheels easily traverse soft ground.
- ECONOMY: unlike hydraulic-powered solutions, the rear gate mechanical lock reduces tractor fuel consumption.
- DURABILITY: the robust composite guard and the reliable, sturdy structure ensure many years of operation.
| Item no. | Type | Z562-1 [rotor] |
| Machine dimensions: | ||
| 1 | Length [mm] | 3800 |
| 2 | Width [mm] | 2470 |
| 3 | Height [mm] | 2050 |
| 4 | Weight [kg] | 2300 |
| Tractor requirements: | ||
| 5 | PTO power demand [kW] | 40 |
| 6 | PTO rotational speed [rpm] | 540 |
| 7 | Electrical connection to tractor | 1 7-pin lighting socket + 1 car lighter socket |
| 8 | Minimum tractor power output [kW] | 50 |
| 9 | Required tractor hydraulic system pressure [atm./MPa] | 140/14 |
| 10 | Required oil flow rate [l/min] | 25 |
| 11 | Electrical system voltage [V] | 12 |
| 12 | Working/transport speed [km/h] | 10/20 |
| Bale characteristics: | ||
| 13 | Yield [pcs./h] | up to 40 |
| 14 | Bale width [mm] | 1200 |
| 15 | Bale diameter [mm] | 1200 |
| 16 | Bale weight [kg] | 100-600 |
| 17 | Rolling chamber type | cylindrical, fixed chamber |
| 18 | Bale density | variable |
| 19 | Net wrapping system | • |
| 20 | Twine wrapping system | V |
| 21 | Twine wrapping spacing adjustment | 3 increments |
| 22 | Chamber feed system | pick-up and rotary feeder |
| Pickup: | ||
| 23 | Pickup type | drum-tine, 4 bars |
| 24 | Pickup width [mm] | 1800 |
| 25 | Service collecting width [mm] | 1520 |
| 26 | Number of pickup pins | 44 |
| Tyres | ||
| 27 | Size | 400/60-15.5 14PR |
| 28 | Tyre pressure [kPa] | 250 |
| Cutting system | ||
| 29 | Feeding rotor | star-type with 3 vertices |
| Optional equipment | ||
| 30 | Chain central lubrication | • |
| 31 | Ensilingapplicator | • |
* Depending on the soil type
** Options available as complete sets only
Legend:
V standard
• optional
