Baler Z562

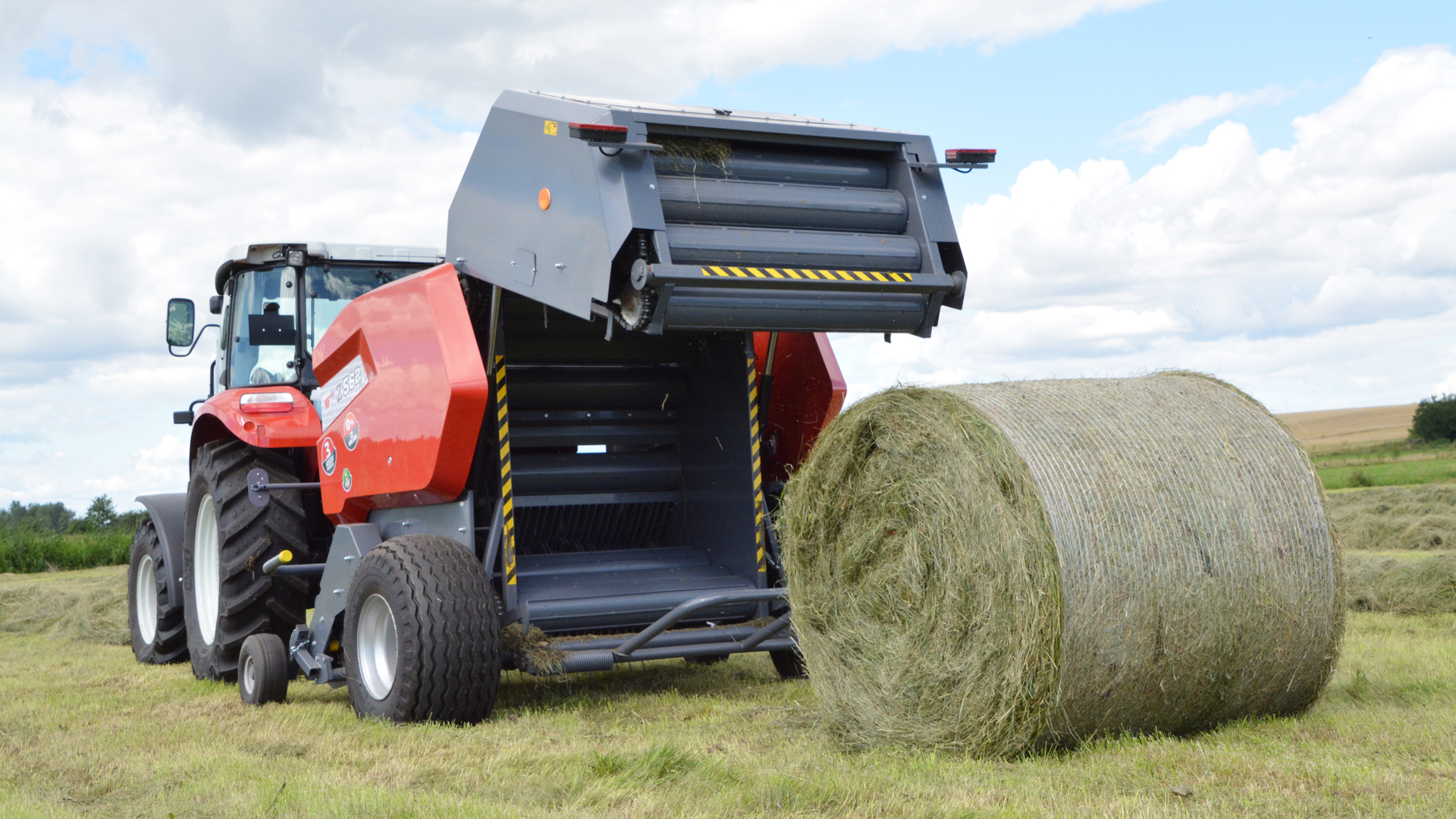

Z562 Baler. This is the first product of this type on the Polish market. The innovative cylindrical baling chambers give the maximum possible compaction ratio. The haylage produced by baling with this machine has the optimum ensilage conditions to become a high quality product. The 180 cm pickups and net wrappers increase the harvest efficiency by as much as 30%. The baling press is the first machine in Poland to have a special applicator for ensilaging fodder as part of the harvesting process. The machine features a rear gate mechanical lock. This solution relieves the strain on the tractor hydraulic system and reduces the vehicle’s fuel consumption. The baling press is available with wide tyres, and the machine performs well on damp terrain.
- PERFORMANCE: the 180 cm pickups and net wrappers increase the harvest efficiency by as much as 30%. The bale ejector rolls the bales clear from the rear gate tilt range, so that the machine does not need to be driven away from the dropped product.
- INNOVATION: the cylindrical baling chambers give the highest compaction ratio possible.
- DIGITAL CONTROL: simple and reliable control with an electronic panel that features a bale counter and other features.
- UNIVERSAL: the wide tyres allow work in difficult terrain conditions, and the adjustable tow bar can be mounted on the lower hitch.
- ECONOMY: unlike hydraulic-powered solutions, the rear gate mechanical lock reduces tractor fuel consumption.
- DURABILITY: the robust composite guard and the reliable, sturdy structure ensure many years of operation.
Item no. | Type | Z562-0 |
Machine dimensions: | ||
1 | Length [mm] | 3730 |
2 | Width [mm] | 2470 |
3 | Height [mm] | 2050 |
4 | Weight [kg] | 2200 |
Tractor requirements: | ||
5 | PTO power demand [kW] | 25 |
6 | PTO rotational speed [rpm] | 540 |
7 | Electrical connection to tractor | 1 7-pin lighting socket + 1 car lighter socket |
8 | Minimum tractor power output [kW] | 35 |
9 | Required tractor hydraulic system pressure [atm./MPa] | 140/14 |
10 | Required oil flow rate [l/min] | 25 |
11 | Electrical system voltage [V] | 12 |
12 | Working/transport speed [km/h] | 10/20 |
Bale characteristics: | ||
13 | Yield [pcs./h] | up to 20 |
14 | Bale width [mm] | 1200 |
15 | Bale diameter [mm] | 1200 |
16 | Bale weight [kg] | 100-600 |
17 | Rolling chamber type | cylindrical, fixed chamber |
18 | Bale density | variable |
19 | Net wrapping system | • |
20 | Twine wrapping system | V |
21 | Twine wrapping spacing adjustment | 3 increments |
22 | Chamber feed system | pickup and fork feeder |
Pickup: | ||
23 | Pickup type | drum-tine, 4 bars |
24 | Pickup width [mm] | 1800 |
25 | Service collecting width [mm] | 1520 |
26 | Number of pickup pins | 44 |
Tyres | ||
27 | Size | 400/60-15.5 14PR |
28 | Tyre pressure [kPa] | 250 |
Optional equipment | ||
29 | Chain central lubrication | • |
30 | Ensilingapplicator | • |
* Depending on the soil type
** Options available as complete sets only
Legend:
V standard
• optional
